High speed type,HFB-Series

Home > Products > PE Plastic Blown Film Machine > High speed type,HFB-Series


Product Description

CHIN FAH's high speed,high quality film blowing machine-HFB-Series.




  1. Resin to be used: HDPE/LDPE/LLDPE.
  2. Strong and stable machine steel structure, films will not vibrate easily so product quality is high.
  3. Elevator up and down type.
  4. Precision process technology, to reduce the defect of processing material or semi-finished good.
  5. Stable thickness and output.
Product Specifications

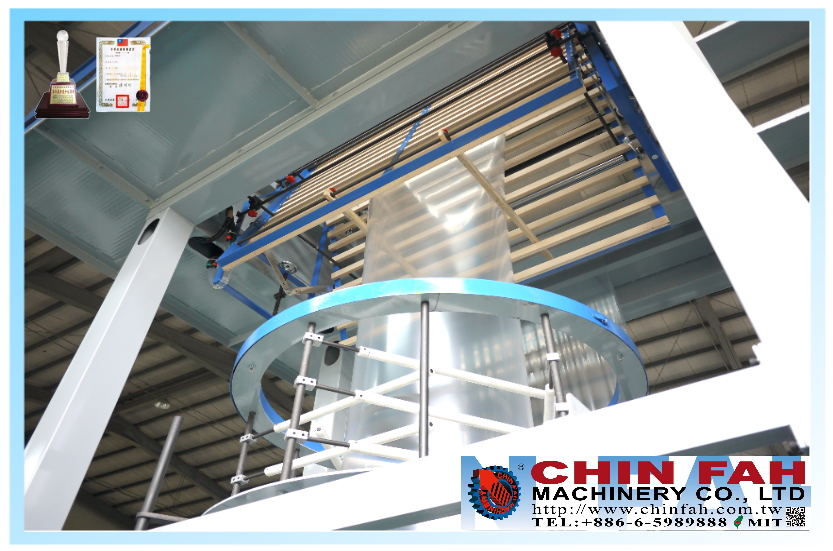

Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.

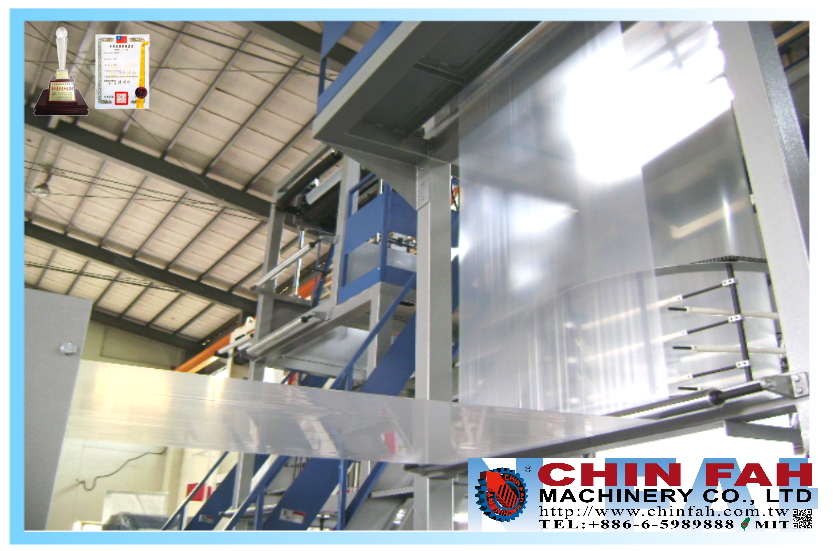

Take up unit: With adjustable height take up tower and pheumatic pinch roller device.

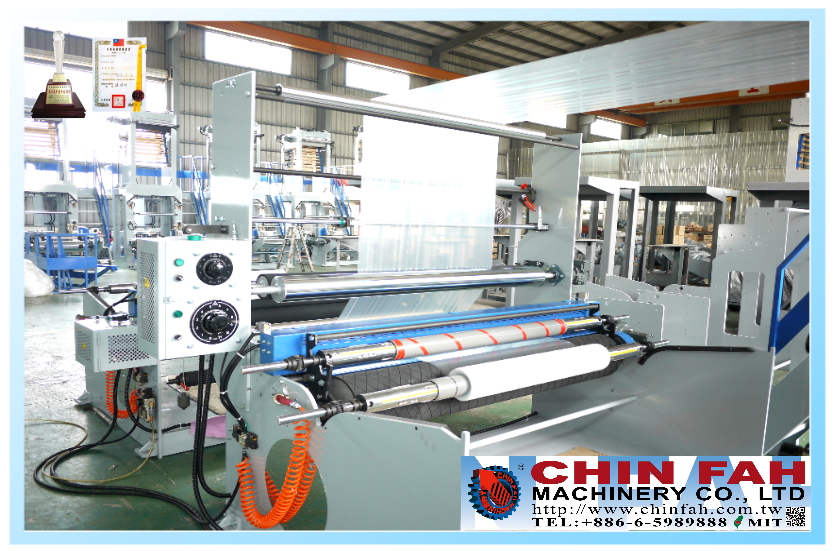

Surface Winder: Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.

Optional Euipment
1. Auto loader
2. Film width controller
3. Meter counter
4. Surface static treater(corona)
5. Embossing roller
6. Air shaft
7. Back to back(double) winder
8. Rotary device

Model YF-HFB-55 YF-HFB-65 YF-HFB-85 YF-HFB-100
Production HDPE/LDPE/LLDPE Inflation Tubular Film
Film Thickness HDPE: 0.008-0.10 MM  LDPE / LLDPE: 0.01-0.20 MM.
Film Width 1100MM 1400MM 2000MM 2800MM
Max. Extrusion Output 110 KG/HR 130 KG/HR 200 KG/HR 300 KG/HR
Type of Extruder Low Base Type
Screw Diameter 55mm 65mm 85mm 100MM
Roller Width 1200mm 1500mm 2200mm 3000MM

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
