Product Description

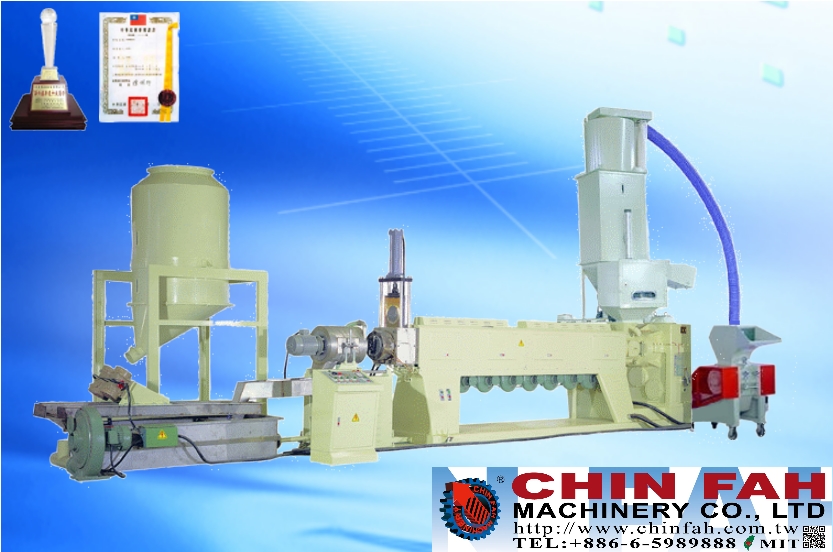

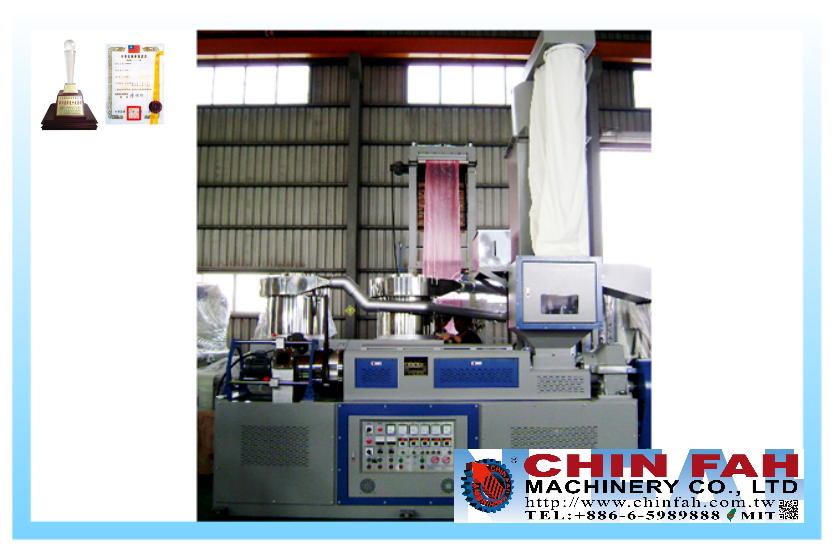

CHIN FAH's granulator machine, Plástico, 塑膠袋回收機, OTR series. With high auality and well designed, 100% made in Taiwan.
- 3-in-1 feeding system: crusher+films in roll process device+feeding device.
- Material to be used: HDPE/LDPE/LLDPE/PP.
- Suitable for factory recycle themselves-clean or washed film waste.
- Die face cutting type.
- Easy to operate, save labor cost.
Product Specifications

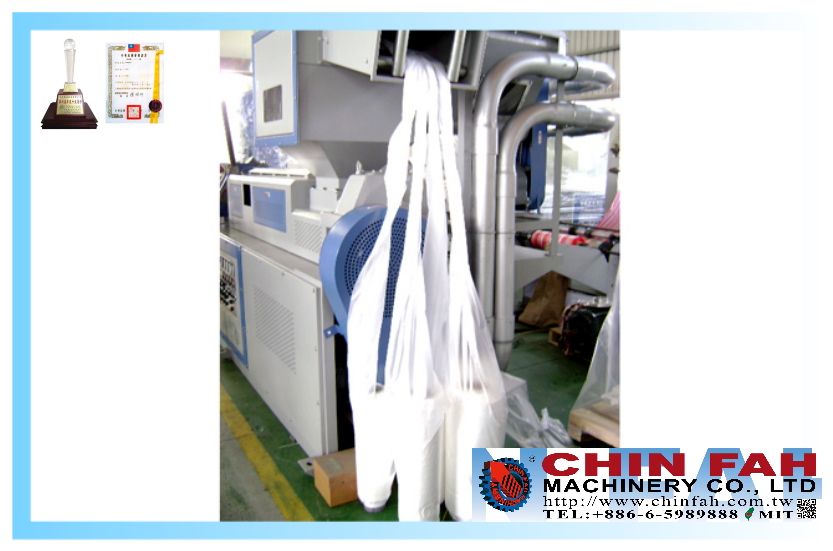

- Crusher: Plastic Waste Was Fed To Compact Size Of Granulator And Chop Up Into Smaller Pieces, And Then Pump Into Waste Storage Tank By Build-In Blower.

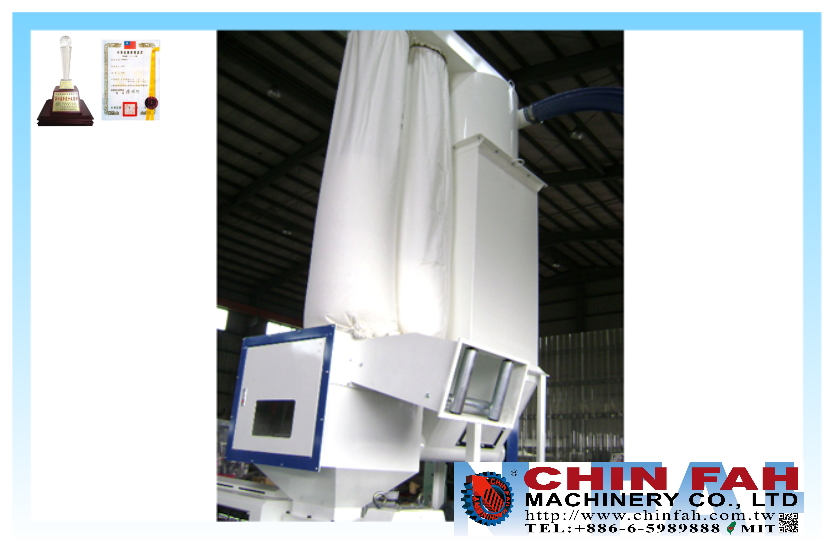

- Waste Storage Tank (Cyclone Hopper): To Store Small Pieces Of Plastic Waste Be Fed Into Cyclone Hopper By Build-In Screw Conveyor.
- Screw + Inverter: To Convey Plastic Waste From Waste Storage Tank To Hopper. Waiting Until Full Filling Of Cyclone Storage Tank, Then Turn On Extruder. (Save Electricity.)
- Forced Feeding Device: To Help Feeding Plastic Waste Into The Extruder Easily.
- Hopper: To Storage Plastic Waste Will Be Fed To Extruder.
- Venting Type Of Extruder: To Work With Ink Waste, Foamed Waste And Wet Waste. Vacuum Pump Is To Help Venting.
| Model | YF-OTR-75A | YF-OTR-80W |
| Crusher+Blower+Waste Storage Tank+Air Disperse Tank+Screw+Inverter+Feeding Device+Mixer Screw+Force Feeding Air Cylinder |
||
| Raw Material Used | HDPE/LDPE/PP | |
| Cooling Type | Air-Cooling | Water-Cooling |
| MAX. Output | 40-60 KG/HR | 90-100 KG/HR |
| Die Head Type | Die Face Cutting Type | |
| Products | Bean Type of Pellets | |
| Screw | 75mm | 80mm |
All Specification and pictures above are for reference only.
If you need more information, please feel free to contact us.
