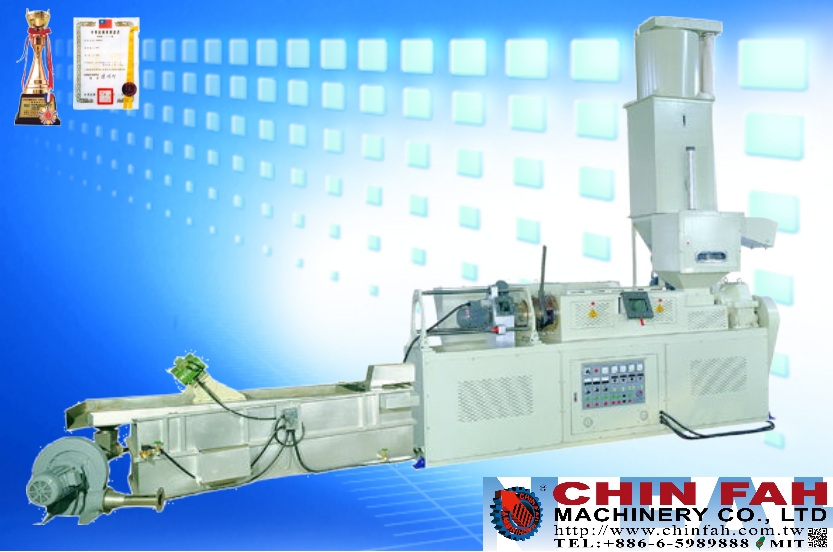

CHIN FAH's professional design of water cool film recycle machine, plastique recyclage, 水冷式製粒機, OTR series. Suitable for recycle PP and PE film, the die head cutting could produce high quality of pellets(granules).

1. 3-in-1 feeding system: crusher+films in roll process device+feeding device.
2. Material to be used: HDPE/LDPE/LLDPE/PP.
3. Suitable for factory recycle themselves-clean or washed film waste.
4. Die face cutting type.
5. Easy to operate, save labor cost.

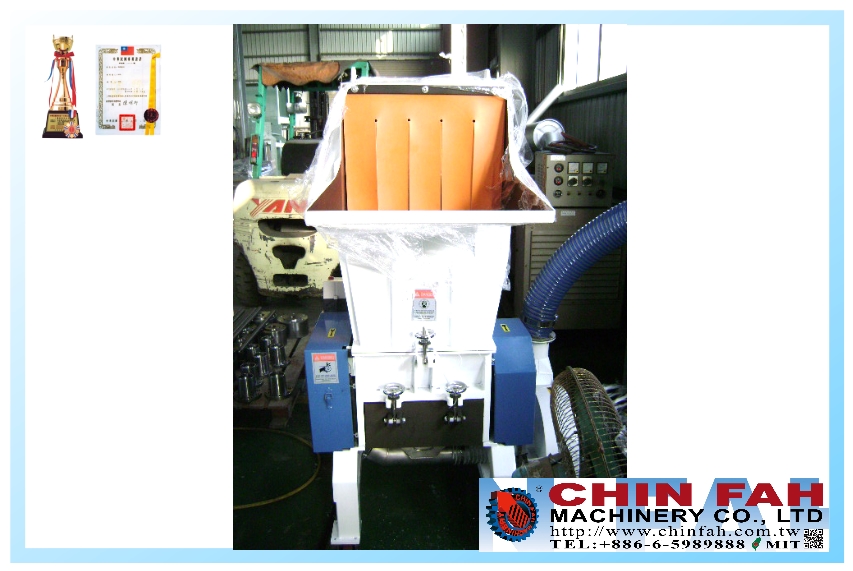

• Crusher: Plastic Waste Was Fed To Compact Size Of Granulator And Chop Up Into Smaller Pieces, And Then Pump Into Waste Storage Tank By Build-In Blower.

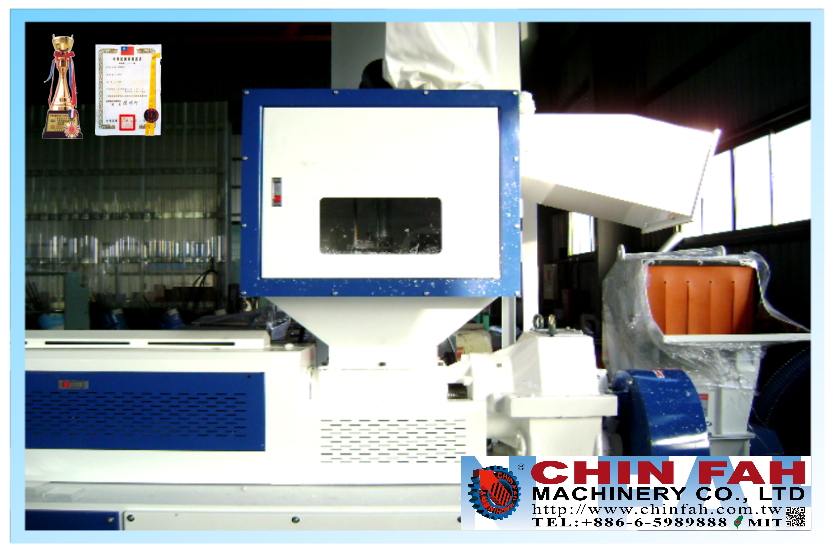

• Waste Storage Tank (Cyclone Hopper): To Store Small Pieces Of Plastic Waste Be Fed Into Cyclone Hopper By Build-In Screw Conveyor.
• Screw + Inverter: To Convey Plastic Waste From Waste Storage Tank To Hopper. Waiting Until Full Filling Of Cyclone Storage Tank, Then Turn On Extruder. (Save Electricity.)
• Forced Feeding Device: To Help Feeding Plastic Waste Into The Extruder Easily.
• Hopper: To Storage Plastic Waste Will Be Fed To Extruder.
• Venting Type Of Extruder: To Work With Ink Waste, Foamed Waste And Wet Waste. Vacuum Pump Is To Help Venting.

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
