plastic recycle machine, البلاستيك, 塑膠製粒機, TR series

Home > Products > Plastic Recycling Machine > plastic recycle machine, البلاستيك, 塑膠製粒機, TR series


Product Description

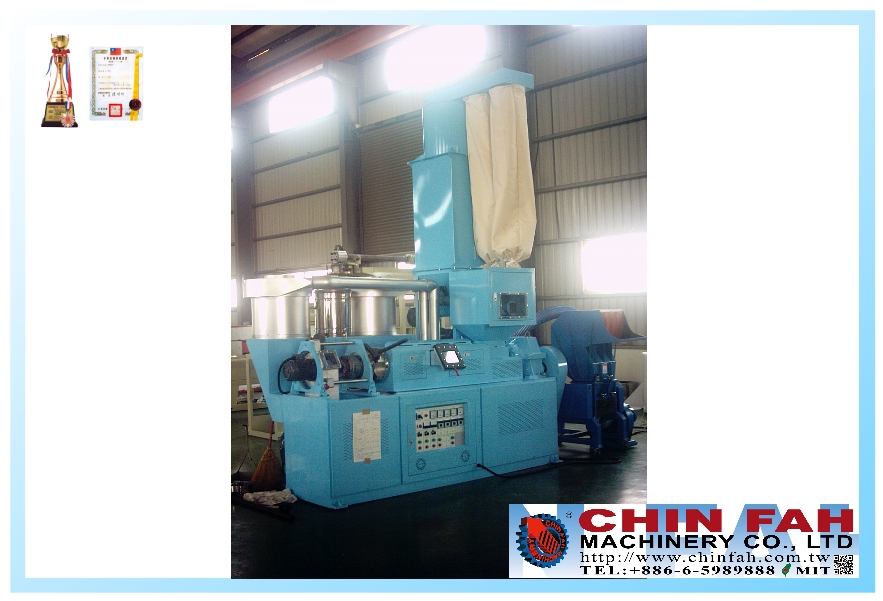

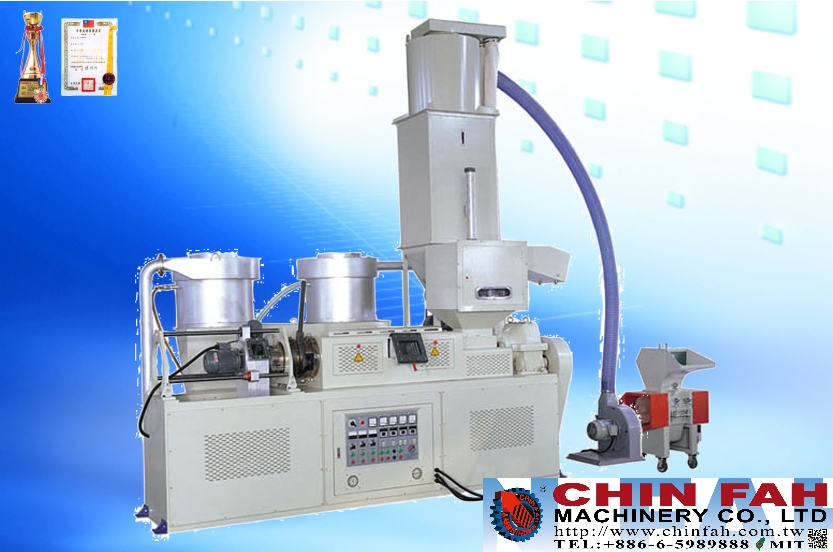

CHIN FAH's well designed plastic recycle machine, البلاستيك,  塑膠製粒機, TR series



  1. Material to be used: HDPE/LDPE/LLDPE/PP.
  2. Suitable for plastic films, plastic scrpas, plastic flaks, lumps, light printed film.
  3. Die face cutting type.
  4. Optional equipment: crusher/screw conveyor/forced feeding device.



Product Specifications
  • Special design of screw with long ratio, well mixing, stable extruding, high output.
  • Screw & barrel are high quality alloy steel, with nitride polished, ground and hard plated.
  • Two stage gear reducer, with precision ground treatment to give longer operation life.
  • Transmission smoothly with low noise level.
  • Standard spare part component is easily to be replaced and maintained.



Optional Equipment:

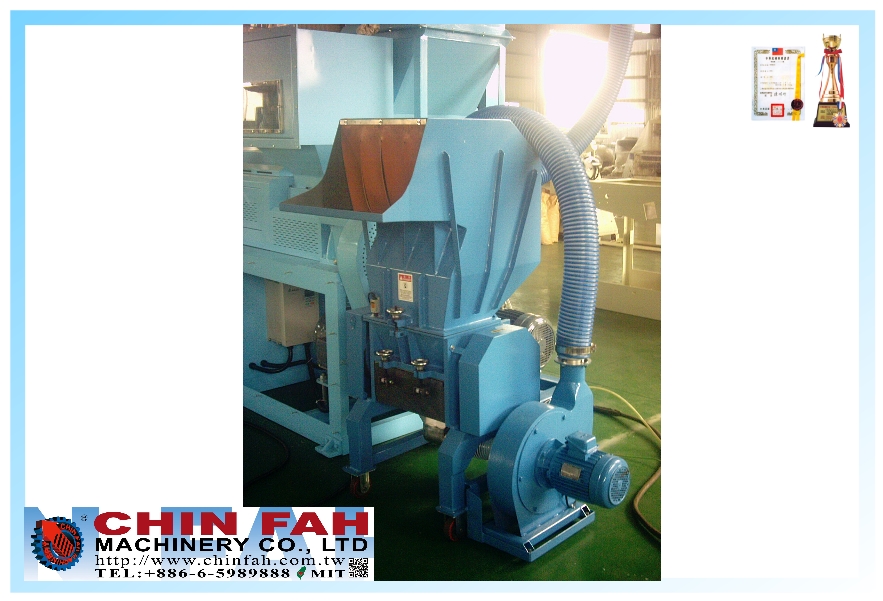

1. Crusher
2. Conveying Screw
3. Forced Feeding Device
4. Storage Tank



Model YF-TR-85 YF-TR-100 YF-TR-120 YF-TR-150
Material Used HDPE/LDPE/LLDPE/PP
Output 100-150 KG/HR    120-220 KG/HR    180-300 KG/HR    250-400 KG/HR
Cutting Type Die Face Cutting
Main Product Bean or Cylinder Shape Pellets
Screw Diameter 85mm 100mm 120mm 150mm



All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
