Product Description

CHIN FAH's PP film recycle machine, recyclage plastique, PP模回收機, CTM series. Suitable for recycle PP film, dirty film, wet film, and heavy print film. The CTM series makes high capacity.



  1. Material to be used: HDPE/LDPE/LLDPE/PP/ABS/PS/PC.
  2. Suitable for plastic films, scrpas, flaks, lumps, heavy printed film.
  3. Two stage recycling line with vented type device perfect for water contained waste and heavy printed film.

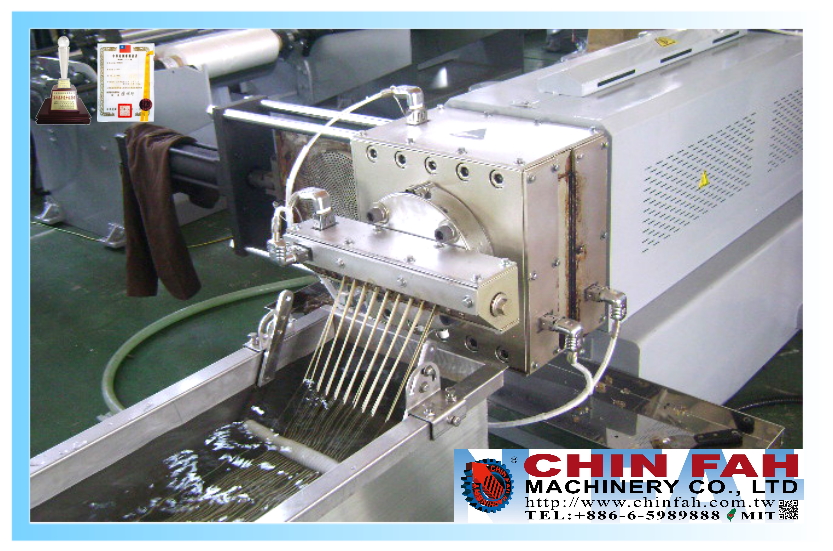

  4. Spaghetti type.
  5. Optional equipment: crusher/screw conveyor/forced feeding device.
Product Specifications
  • Continuous two stations hydraulic slide type screen changer: with bigger screen diameter, resin is flowing smoothly.
  • Leak-free and easy to use.
  • Screen can be replaced according to the pressure setting.
  • Special design of screw with long ratio, well mixing, stable extruding, high output.
  • Screw & barrel are high quality alloy steel, with nitride polished, ground and hard plated.
  • Venting type: To work with inked wastes, foamed wastes and wet wastes. Vacuum pump is to help venting and is optional.

Optional Equipment:
1. Crusher
2. Conveying Screw
3. Forced Feeding Device
4. Storage Tank


Model YF-CTM-85 YF-CTM-100 YF-CTM-130 YF-CTM-150
Material Used PE/PP/ABS/PS/PC
Output 80-150 KG/HR 150-250 KG/HR 200-350 KG/HR 300-600KG/HR

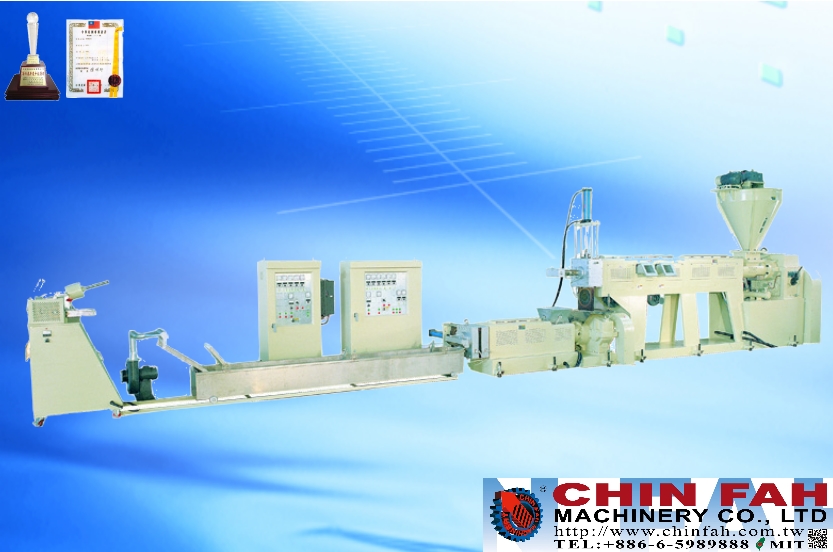

Machine Type Two-Stage Recycling Pelletizer
Cutting Type Spaghetti Type
Screw Diameter 85mm 100mm 130mm 150mm



All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
