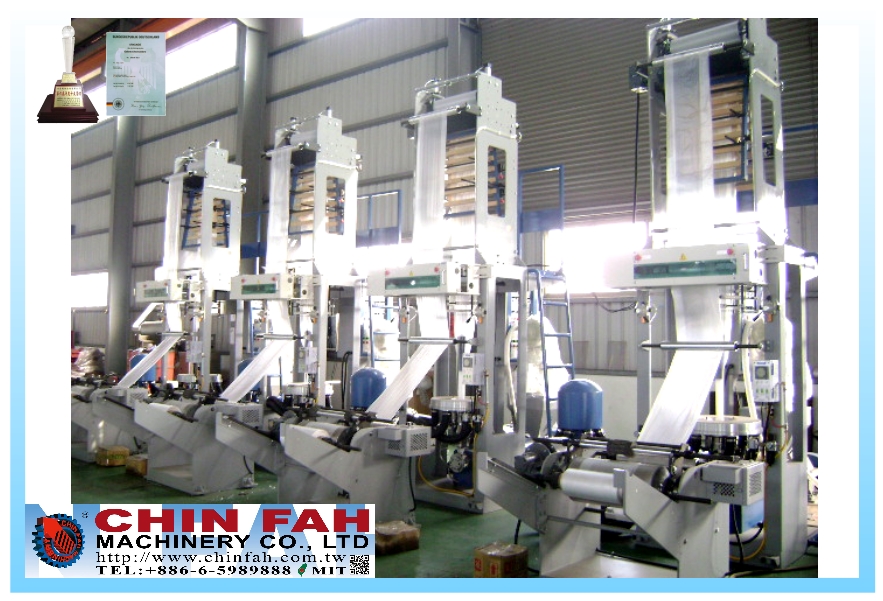

Blown Film, Plastic Inflation Machine, Mini Type , MHB Series

Home > Products > PE Plastic Blown Film Machine > Blown Film, Plastic Inflation Machine, Mini Type , MHB Series


Product Description
  1. Resin to be used: HDPE/LDPE
  2. One body integrated design
  3. No assembly and installation is needed after arrival.
  4. Screw with five-stage vibration design, MI doesn't degenerate. Wear-resisting, corrosion-resisting,durable mixing effect, output is high and stable.
  5. Easy to operate, save time & labor cost.
Product Specifications

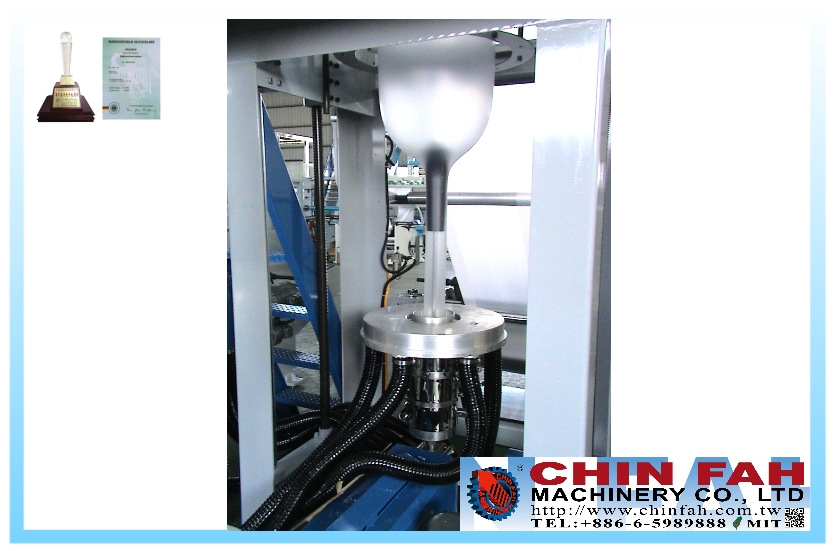

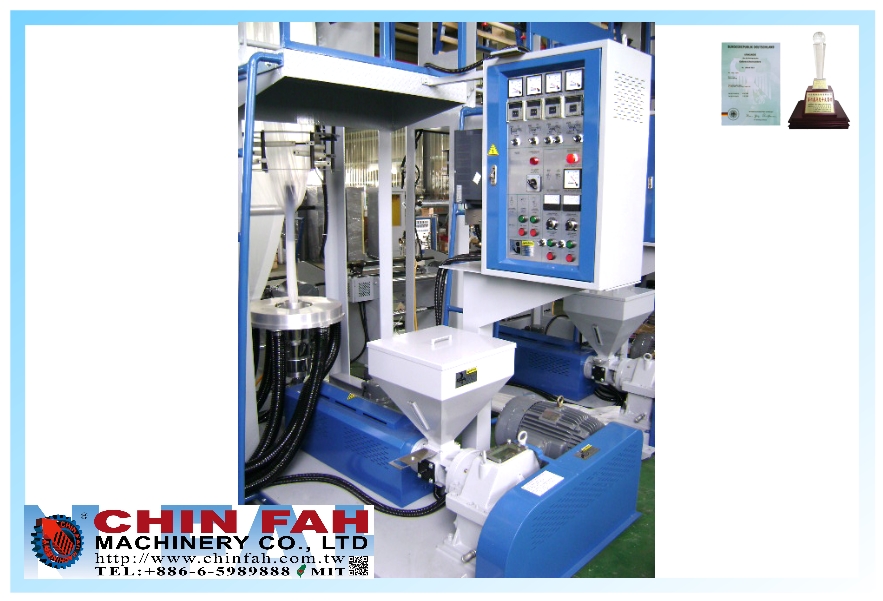

  • Extruder: low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
  • Take up unit: special design of the wooden collapsing qusseting board, easy to adjusted.

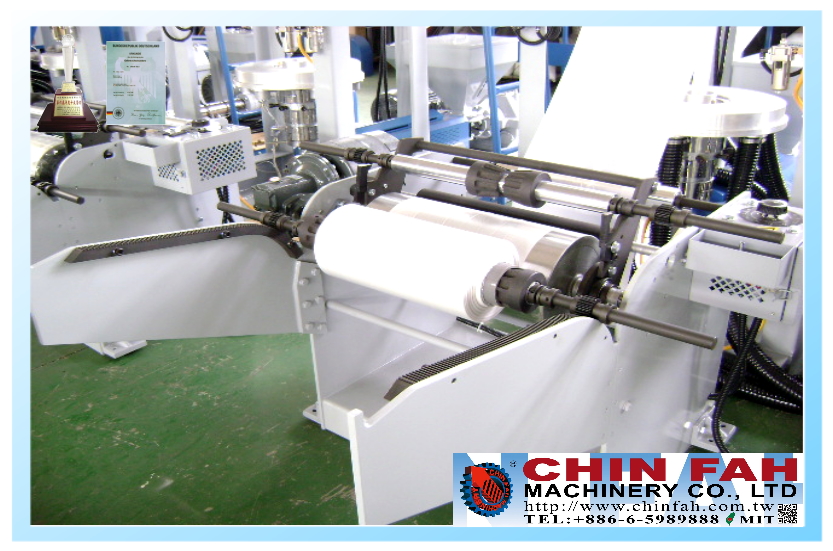

  • Surface Winder: special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.

Optional equipment:

  1. Auto loader
  2. Dryer
  3. Surface static treater(Corona)
  4. Rotating Die
  5. Back to back(double)winder
Model YF-MHB-40
Production HDPE/LDPE/LLDPE Inflation Tubular Film
Film Thickness HDPE:0.008-0.10MM  LDPE:0.01-0.20MM
Film Width 400MM
Max. Extrusion Output 35~40 KG/HR
Type of Extruder Low Base Type
Screw Diameter 40mm
Roller width 500mm

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
