Product Description



CHIN FAH's double die head plastic extrusion, extrusora de plástico, HDPE製袋機, CHB Series. Manufactured by our professional technication, well designed and high quality.

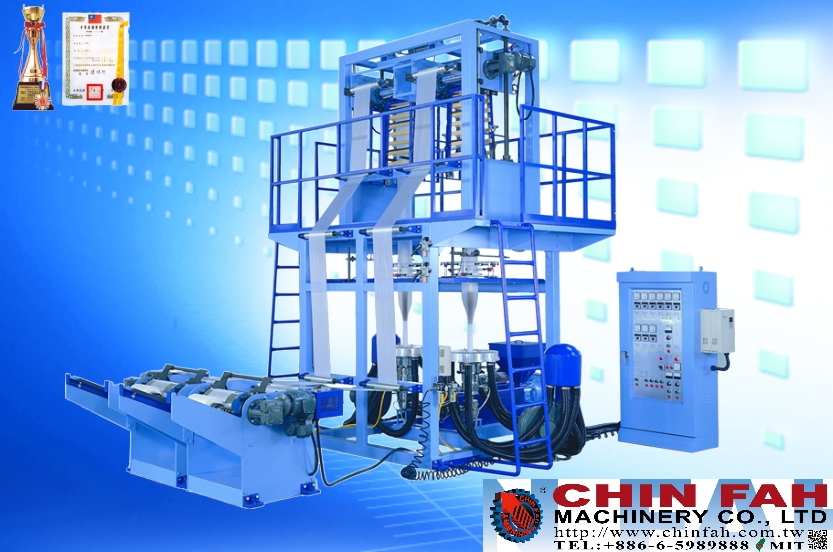

  1. CHB-Series: single color double die, two extruder blown film machine.
  2. CTCHB-Series: double color double die, two extruder film manufacturing machine.
  3. Clear two color strips and high quality film.
  4. High-efficiency 2-in-1 way, combine two-machine function into one machine, save 30% space, save over 50% power and save 20% budget.
Product Specifications
  • Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.

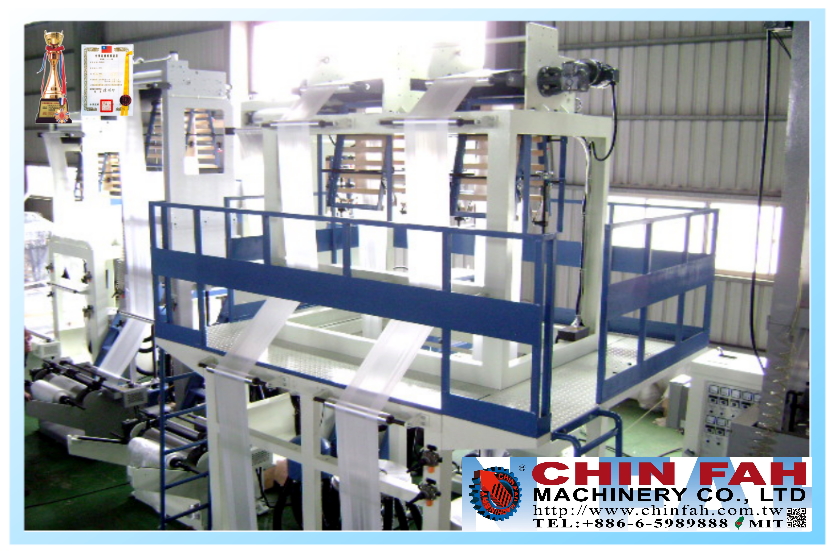

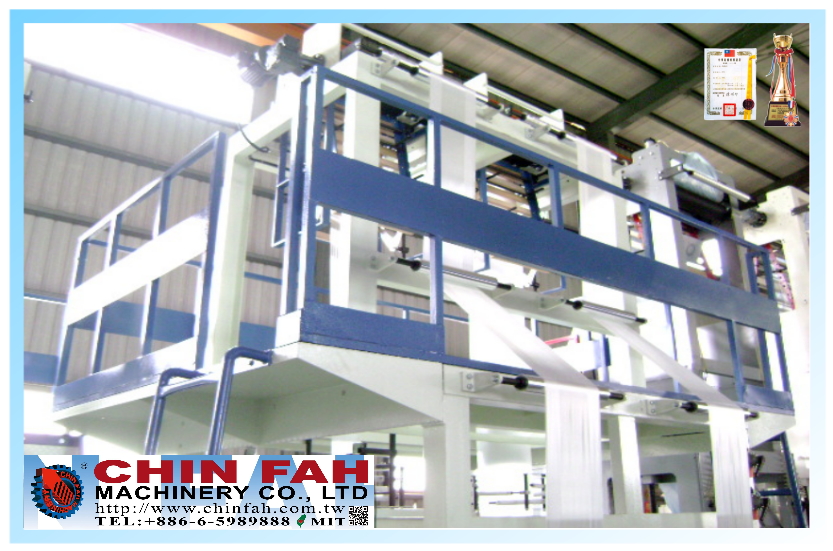

  • Take up unit: With adjustable height take up tower and pheumatic pinch roller device.

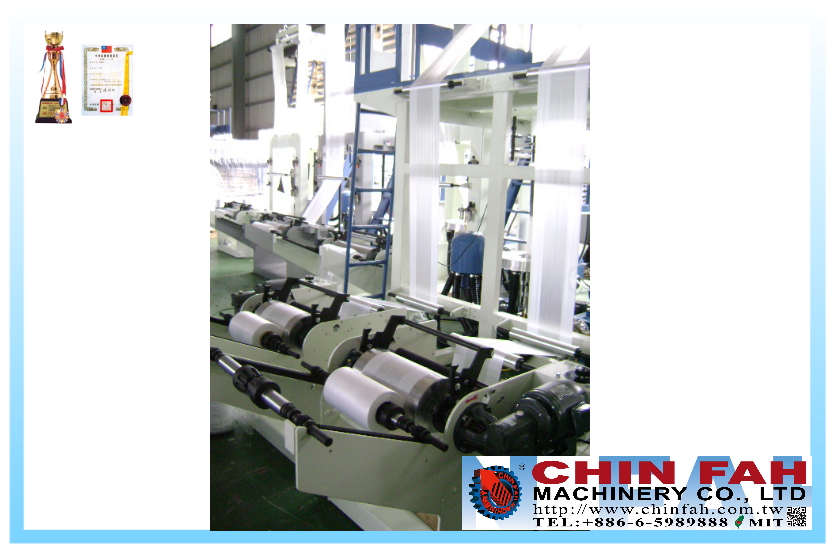

  • Surface Winder: Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.



Optional Euipment
1. Auto loader
2. Film width controller
3. Meter counter
4. Surface static treater(corona)
5. Embossing roller
6. Air shaft

Model YF-CHB-45 YF-CHB-65
Production HDPE/ LDPE/ LLDPE Inflation Tubular Film
Film Thickness

HDPE:0.008-0.10MM  LDPE:0.01-0.20MM

Film Width 350MM 650MM
Extrusion Output 70 KG/HR 130 KG/HR
Screw Diameter 45mm 65mm
Roller Width 400mm 750mm

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
