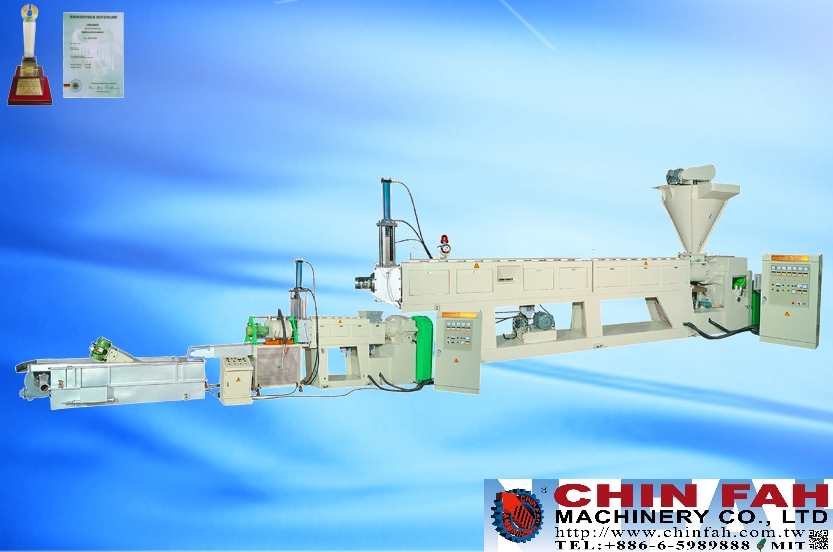

Pelletizer, Plastic Recycling, Two Stage, CTR Series

Home > Products > Plastic Recycle Machine > Pelletizer, Plastic Recycling, Two Stage, CTR Series


Product Description
  1. Material to be used: HDPE/LDPE/LLDPE/PP
  2. Suitable for plastic bags, scraps, flaks, lumps, printed film.
  3. Two stage recycling line with vented type device perfect for water contained waste and printed film.
  4. Die face cutting type.
  5. Optional equipment: crusher/screw conveyor/forced feeding device.
Product Specifications
  • Continuous two stations hydraulic slide type screen changer: with bigger screen diameter, resin is flowing smoothly.
  • Leak-free and easy to use.
  • Screen can be replaced according to the pressure setting.
  • Venting type: To work with inked wastes, foamed wastes and wet wastes. Vacuum pump is to help venting and is optional.
  • Special design of screw with long ratio, well mixing, stable extruding, high output.
  • Screw & barrel are high quality alloy steel, with nitride polished, ground and hard plated.

Optional Equipment:
1. Crusher
2. Conveying Screw
3. Forced Feeding Device
4. Storage Tank

Model YF-CTR-85 YF-CTR-100 YF-CTR-120  YF-CTR-150
Material Used HDPE/LDPE/LLDPE/PP
Product Bean Shape Pellets
Output 100-150 KG/HR 120-200 KG/HR 180-300 KG/HR 250-400 KG/HR
Cutting Type Die Face Cutting Type
Screw Diameter 85mm 100mm 120mm 150mm

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
