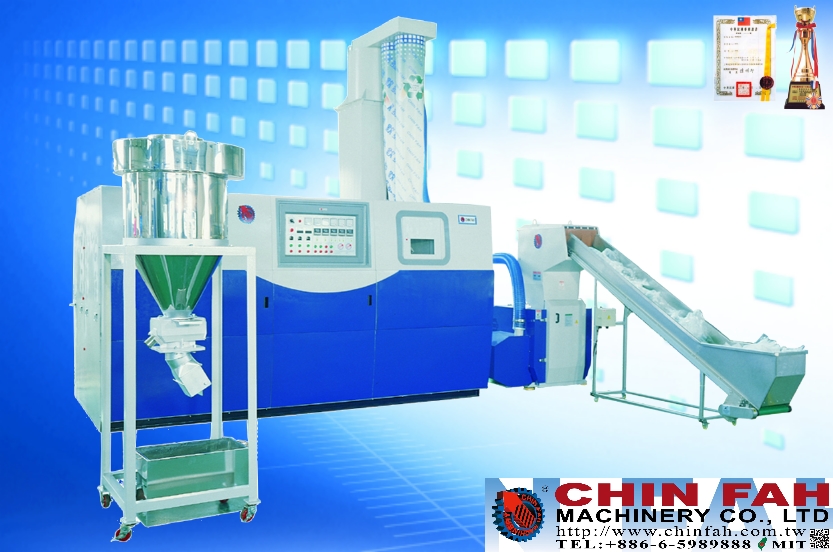

Pelletizer, Plastic Recycling, ATR Series

Home > Products > Plastic Recycling Machine > Pelletizer, Plastic Recycling, ATR Series


Product Description
  1. Under CE Machinery Directive in August, 1999 to ensure the product security for the users.
  2. YF-ATR-75 was awarded second prize of 2008 of Taiwan Plastic Extrusion Machine at TAIPEI PLAS.
  3. 3-in-1 feeding system: Conveyor+Crusher+Waste Storage Tank.Saving labor with efficient working.
  4. Suitable for small factory to recycle the clean HDPE/LDPE/LLDPE plastic film wastes.
  5. Fan cooling system, saving water and easy to operate.
  6. Environmental product ,save electricity around 30% of total power.
  7. Excellent design with good performance. Low noise.
Product Specifications

  • Crusher: Plastic Waste Was Fed To Compact Size Of Granulator And Chop Up Into Smaller Pieces, And Then Pump Into Waste Storage Tank By Build-In Blower.

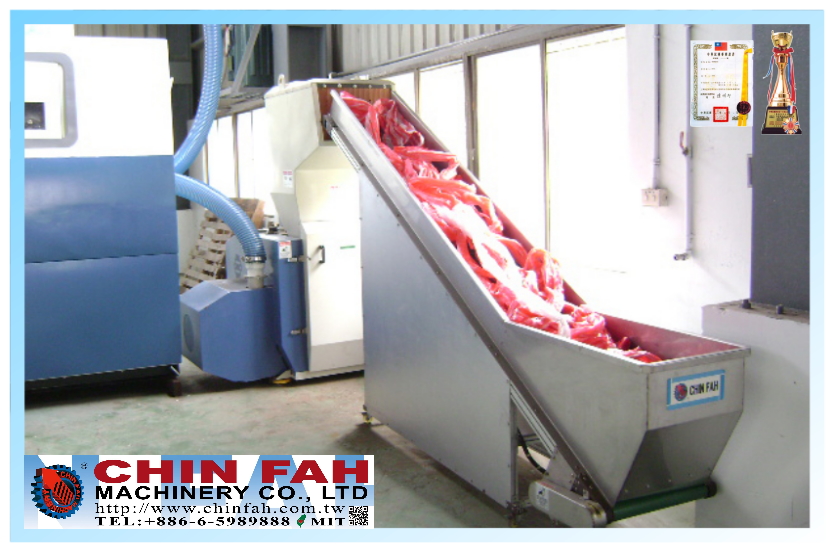

  • Conveyor: Automatically send plastic waste into crusher, convenience to send the plastic waste, safe labor cost.

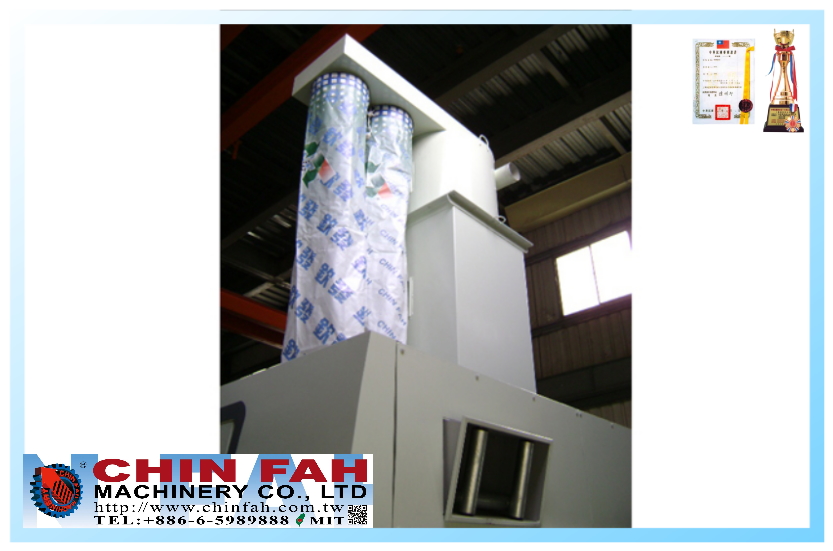

  • Waste Storage Tank (Cyclone Hopper): To Store Small Pieces Of Plastic Waste Be Fed Into Cyclone Hopper By Build-In Screw Conveyor.
  • Screw + Inverter: To Convey Plastic Waste From Waste Storage Tank To Hopper. Waiting Until Full Filling Of Cyclone Storage Tank, Then Turn On Extruder. (Save Electricity.)
  • Forced Feeding Device: To Help Feeding Plastic Waste Into The Extruder Easily.
  • Hopper: To Storage Plastic Waste Will Be Fed To Extruder.
  • Venting Type Of Extruder: To Work With Ink Waste, Foamed Waste And Wet Waste. Vacuum Pump Is To Help Venting.



Model YF-ATR-75
Crusher + Blower + Waste Storage Tank + Air Disperse
Tank + Screw + Inverter + Feeding Device + Mixer Screw + Force Feeding Air Cylinder
Raw Material Used HDPE/ LDPE/ LLDPE
Cooling Type Air-Cooling
Max. Output 40-60 KG/ HR
Die Head Type Die Face Cutting Type

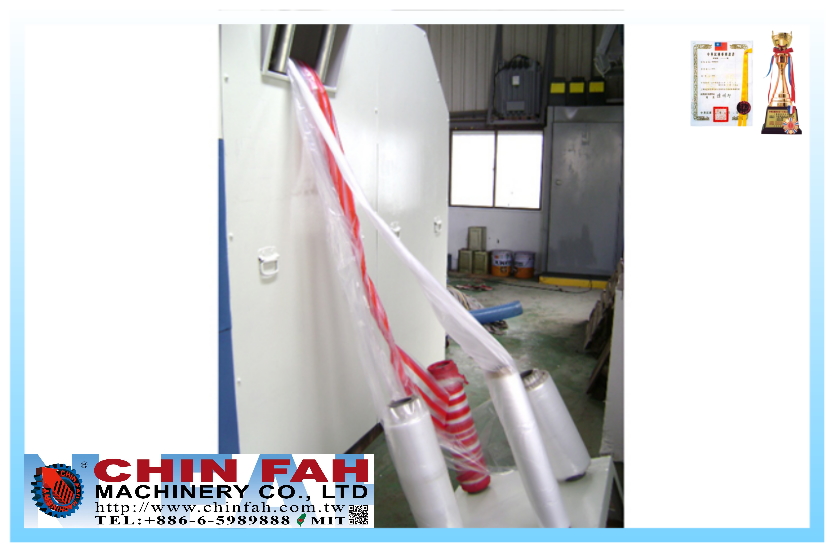

Products Bean Type of Pellets
Screw 75mm


 https://youtu.be/DbhI3Rn9FtA

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
