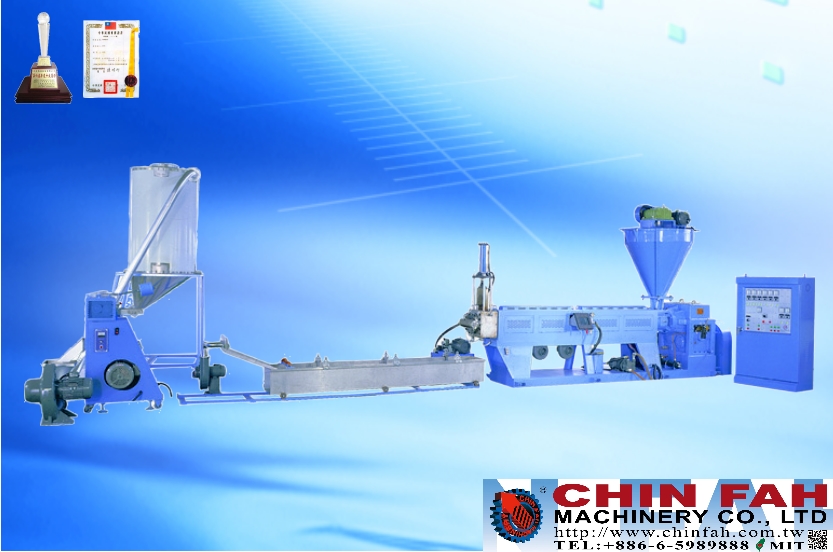

Pelletizer, Plastic Recycling, TM-100

Home > Products > Plastic Recycling Machine > Pelletizer, Plastic Recycling, TM-100


Product Description
  1. Material to be used: HDPE/LDPE/LLDPE/PP/ABS/PS/PC.
  2. Suitable for making films/scraps/flaks/lumps/heavy printed film.
  3. Perfect for water contained waste and printed film.

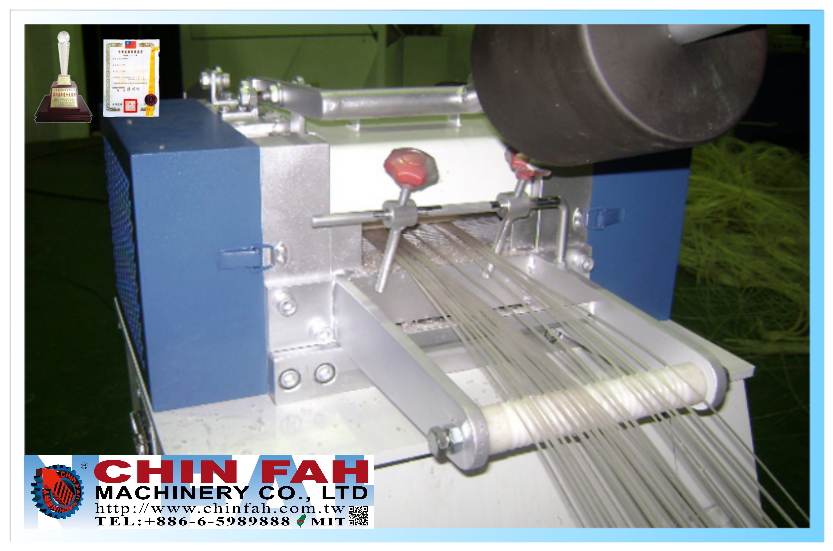

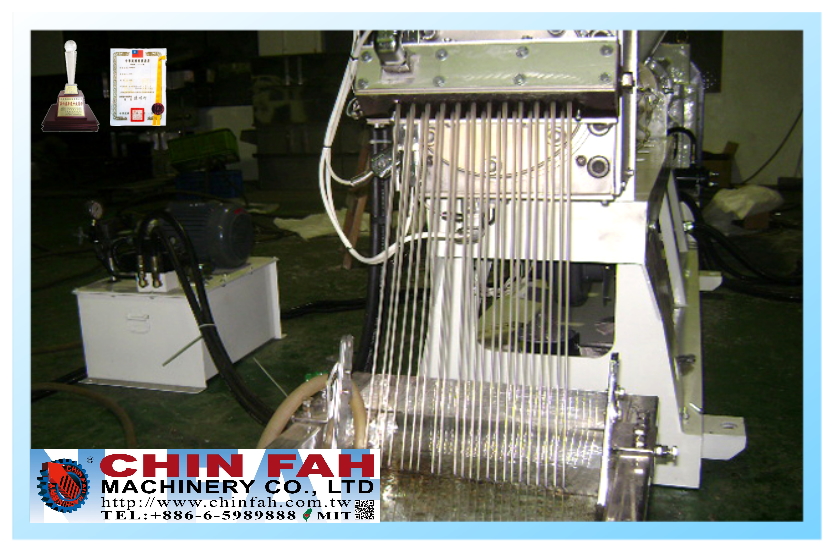

  4. Spaghetti type.
  5. Optional equipment:crusher/screw conveyor/forced feeding device.
Product Specifications
  • Special design of screw with long ratio, well mixing, stable extruding, high output.
  • Screw & barrel are high quality alloy steel, with nitride polished, ground and hard plated.
  • Two stage gear reducer, with precision ground treatment to give longer operation life.
  • Transmission smoothly with low noise level.
  • Standard spare part component is easily to be replaced and maintained.

Optional Equipment:
1. Crusher
2. Conveying Screw
3. Forced Feeding Device
4. Storage Tank

Model YF-TM-55 YF-TM-75 YF-TM-100 YF-TM-120
Material Used PE/PP/ABS/PS/PC
Output

50-70 KG/HR

80-110 KG/HR

120-220 KG/HR

150-280 KG/HR

Cutting Type Spaghetti Type
Screw Diameter 55mm 75mm 100mm 120mm



All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
