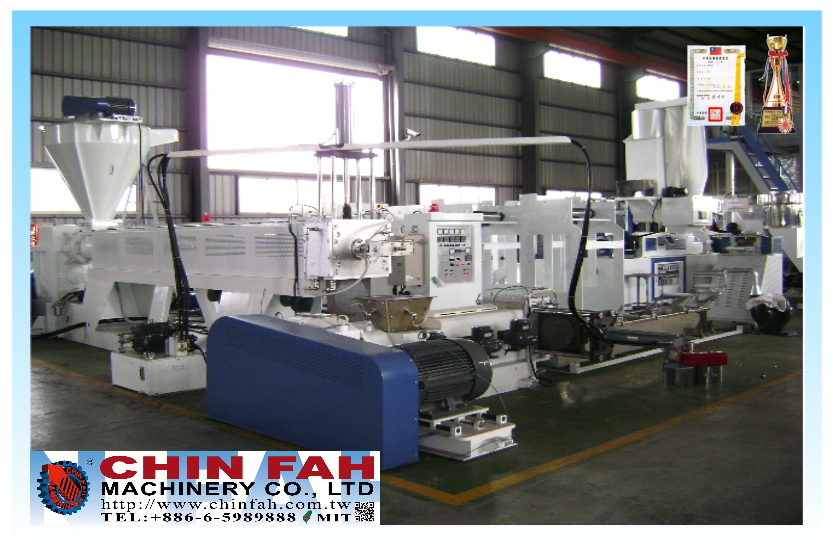

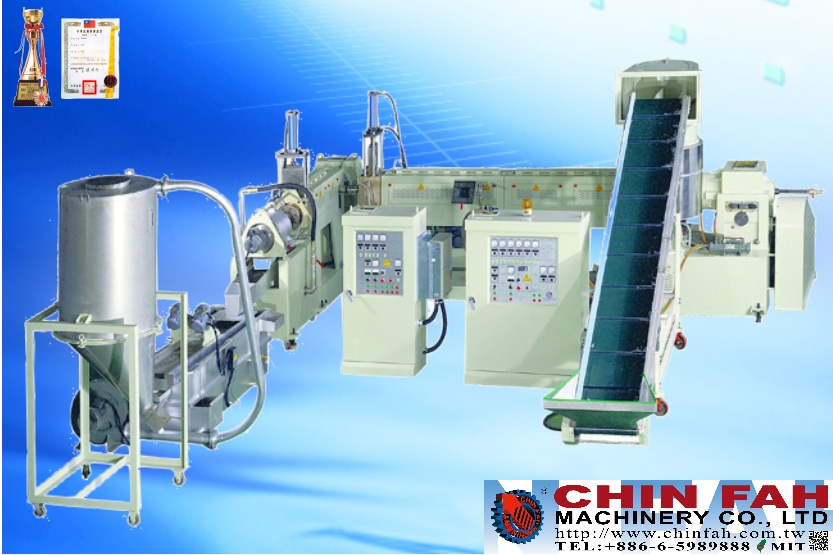

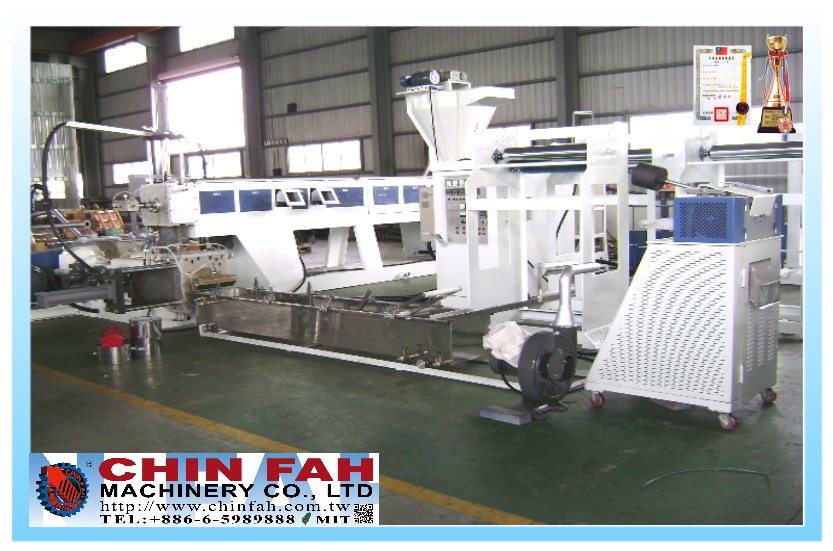

Pelletizer, Plastic Recycling Machine, Two Stage, 3in1, CHNV-100

Home > Products > Plastic Recycle Machine > Pelletizer, Plastic Recycling Machine, Two Stage, 3in1, CHNV-100


Product Description
  1. Material to be used: HDPE/LDPE/LLDPE/PP.
  2. Suitable for plastic bags, scraps, flaks, lumps.
  3. 3-in-1 design: combine with conveyor & shredding drum+extruder+pelletizer into one recycling machine.
  4. Two stage recycling line with vented type device perfect for water contained waste and printed film.
  5. Die face cutting type.
Product Specifications
  • Continuous two stations hydraulic slide type screen changer: with bigger screen diameter, resin is flowing smoothly.
  • Leak-free and easy to use.
  • Screen can be replaced according to the pressure setting.
  • Special design of screw with long ratio, well mixing, stable extruding, high output.
  • Screw & barrel are high quality alloy steel, with nitride polished, ground and hard plated.
  • Venting type: To work with inked wastes, foamed wastes and wet wastes. Vacuum pump is to help venting and is optional.

Optional Equipment:
1. Metal Detector
2. Storage Tank

Model YF-CHNV-100 YF-CHNV-135
Product Two Stage 3-IN-1 Recycing Machine
Material Use

HDPE/LDPE/LLDPE/PP

Output 200-300 KG/HR 400-600 KG/HR
Cutting Type Die Face Cutting
Screw Diameter 100mm 135mm


All Specification and pictures above are for reference only.



If you need more information, please feel free to contact us.



E-mail: sales@chinfah.com.tw





 Video: Two stage plastic recycle machine, CHNV-100
