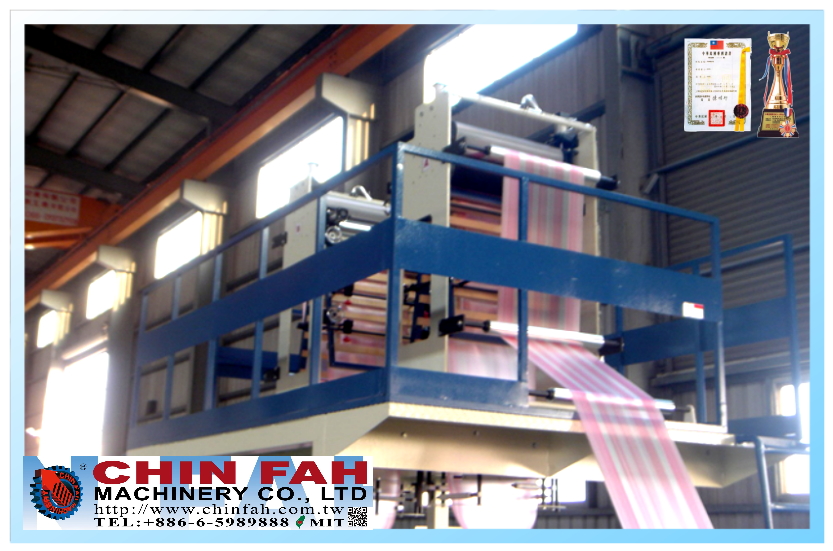

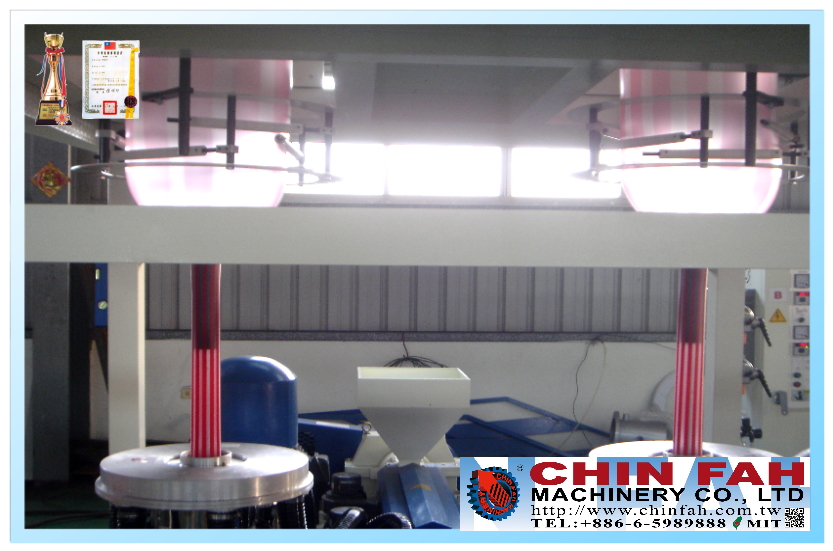

Tubular film making machine, đùn nhựa, CTCHB Series, made in Taiwan

Home > Products > Plastic Extrusion Machine > Tubular film making machine, đùn nhựa, CTCHB Series, made in Taiwan


Product Description



CHIN FAH's tubular film making machine, đùn nhựa,  CTCHB Series, origional 100% made in Taiwan, with high quality and prefessional design.



  1. CHB-Series: single color double die, two extruder blown film machine.
  2. CTCHB-Series: double color double die, two extruder film manufacturing machine.
  3. Clear two color strips and high quality film.
  4. High-efficiency 2-in-1 way, combine two-machine function into one machine, save 30% spacesave over 50% power and save 20% budget.
Product Specifications

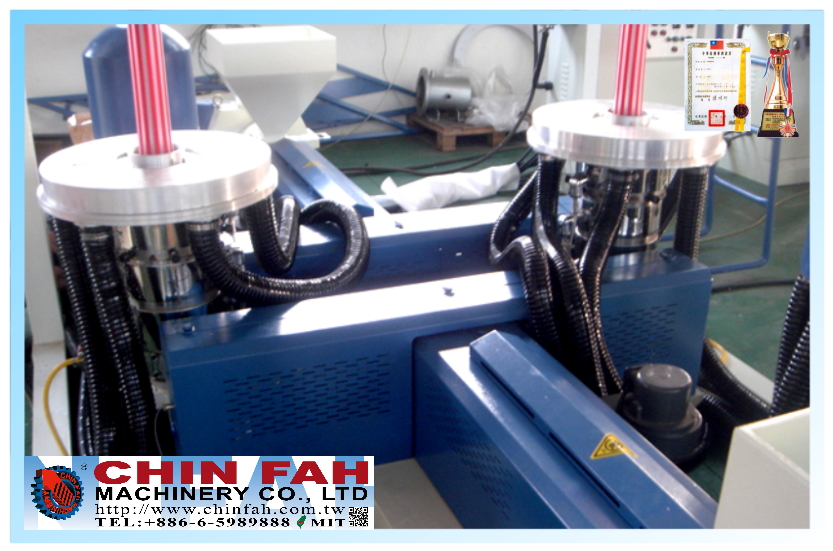

  • Extruder: Low base type, with grinded gear box, excellent design of die head with adequate pressure, smooth flowing high capacity, and special air ring for proper cooling and stabilizing.
  • Take up unit: With adjustable height take up tower and pheumatic pinch roller device.
  • Surface Winder: Special design of winder winding diameter is increase equip with adjustable gear rail cause more compact winding more even no offset and easy to operate.



Optional Euipment
1. Auto loader
2. Film width controller
3. Meter counter
4. Surface static treater(corona)
5. Embossing roller
6. Air shaft

Model YF-CTCHB-50(TWO COLOR)
Production HDPE Inflation Tubular Film
Film Thickness

0.02-0.20MM

Film Width 550MM
Extrusion Output 75-80 KG/HR
Screw Diameter 50mm
Roller Width 650mm

All Specification and pictures above are for reference only.

If you need more information, please feel free to contact us.
